Sistema de filtrado
Esta informacion sólo está disponible en inglés. Para su conveniencia, en Olfasense tenemos hablantes nativos de español. Por favor, háganos saber si desea continuar la conversación en español.

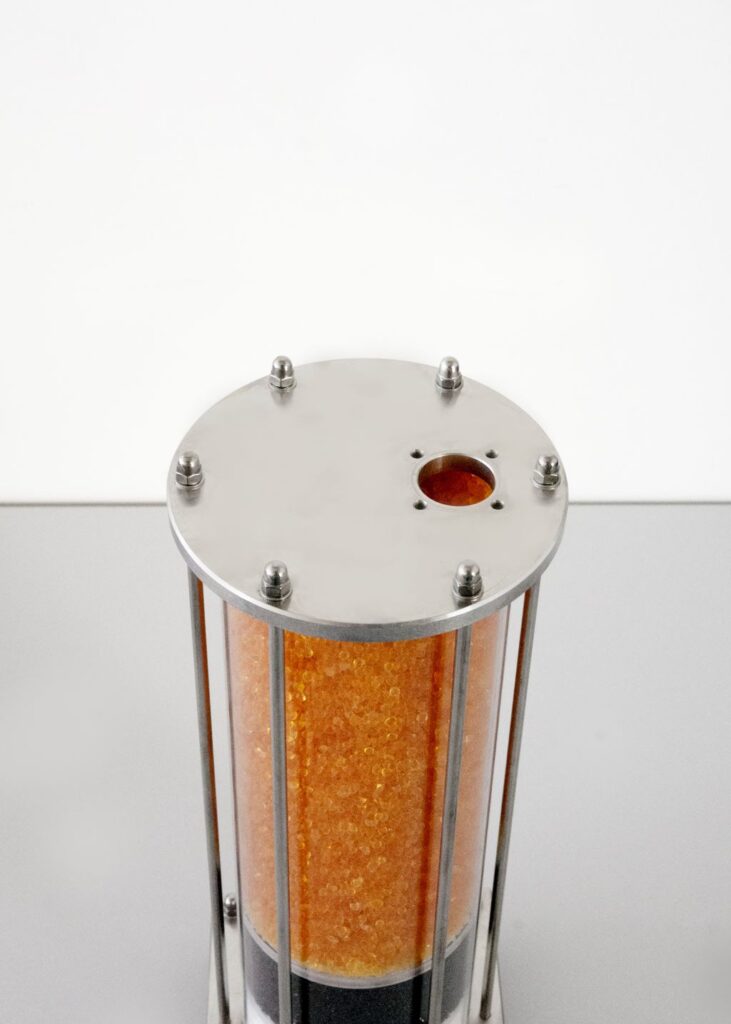

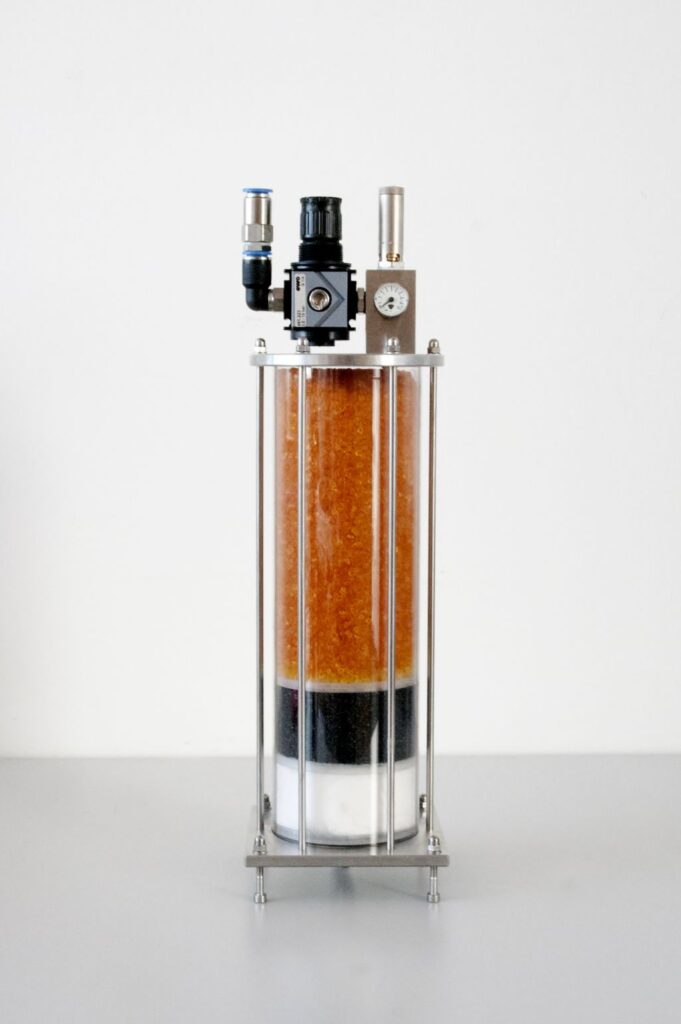

This easy-to-use filter system consists of a PCA tube (Makrolon®) with a stainless steel lid and base.

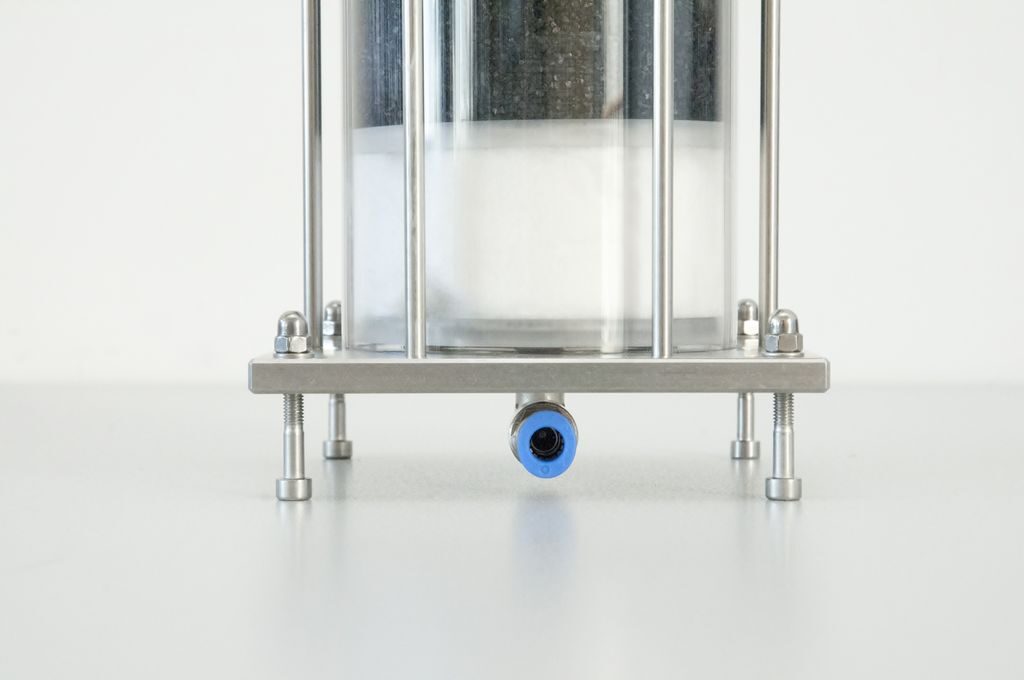

This unit is available with four feet for mobile application or with a wall bracket for use in odour laboratories.
The filter system connects an oil-free compressor, or a bottle of compressed gas, and the olfactometer.
It is filled with silica gel, activated carbon, filter cotton and a microfine filter for the separation of moisture, organic compounds and dust.
The aim is to achieve uncontaminated reference-air, or zero-air. The air inlet and outlet are 8mm compressed air quick connectors.

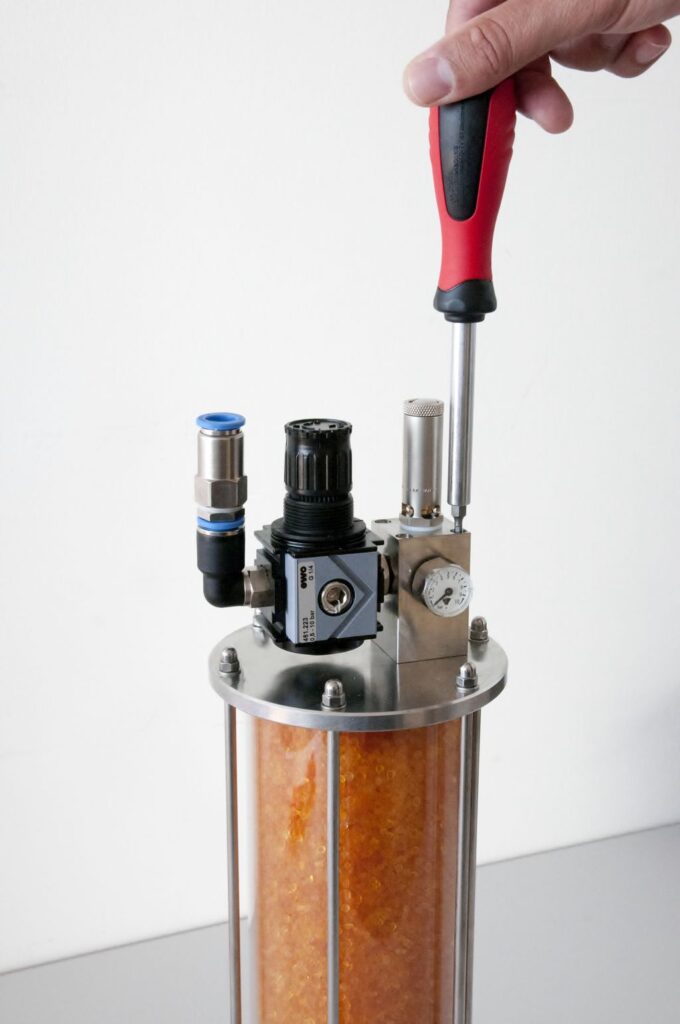

The system has been tested to 6 bar. The pressure limit valve limits the working pressure of the TO-series olfactometers to 4 bar, which stabilises the system and ensures a constant working pressure.
Facts
- Filter system for odour laboratory use
- Connection via oil-free compressor or compressed gas
- Separation of moisture, organic compounds and dust
- Low maintenance
- Easy to use
- Portable
