Liquid to gas vaporiser (LiGaVa)
The LiGaVa system vaporises any kind of liquid into the gas phase.
Because time, volume stream, temperature and amount of liquid are all known variables, it is a highly standardised odour sampling system.

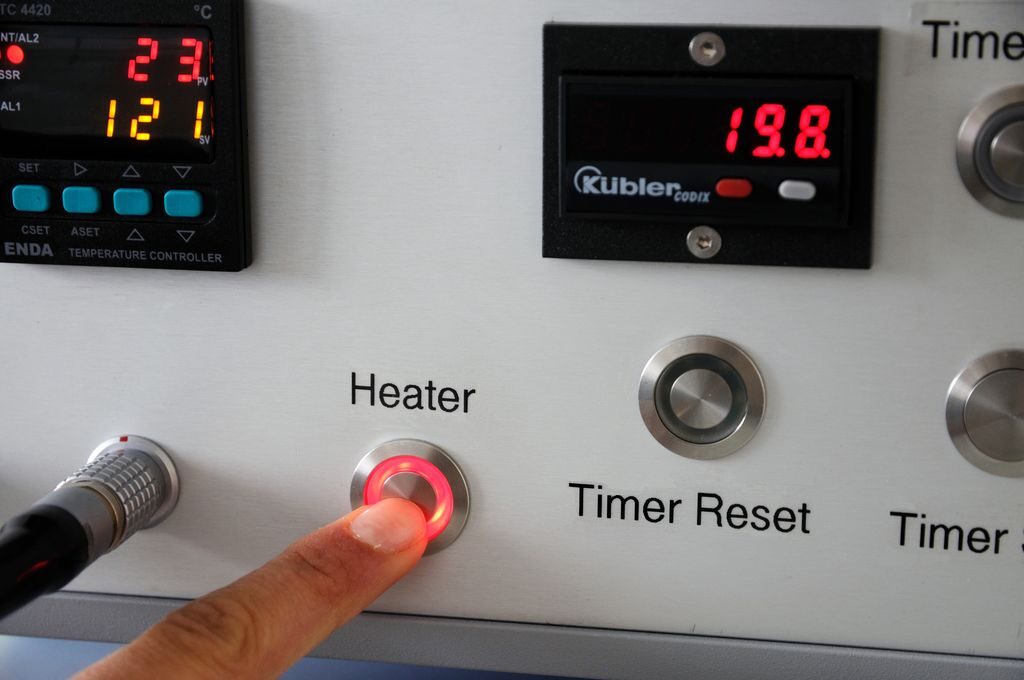

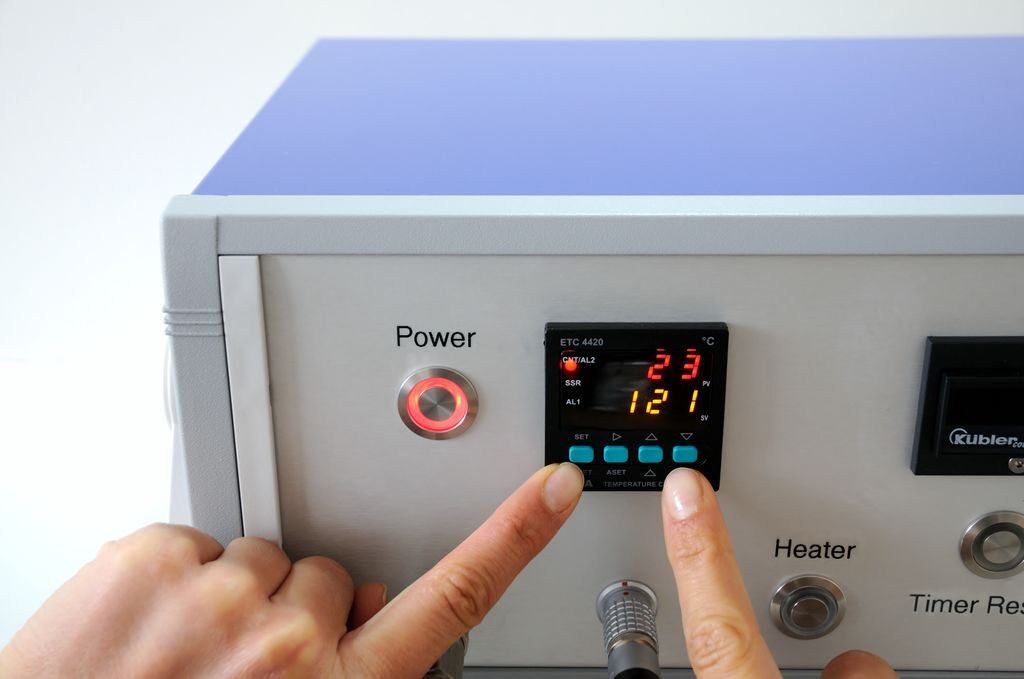

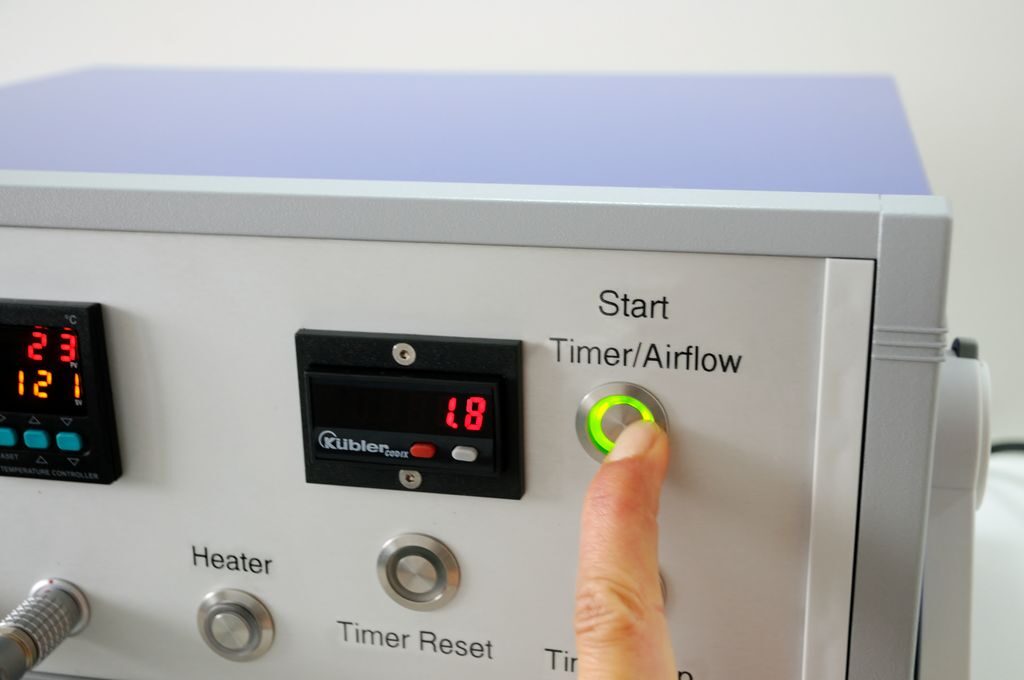

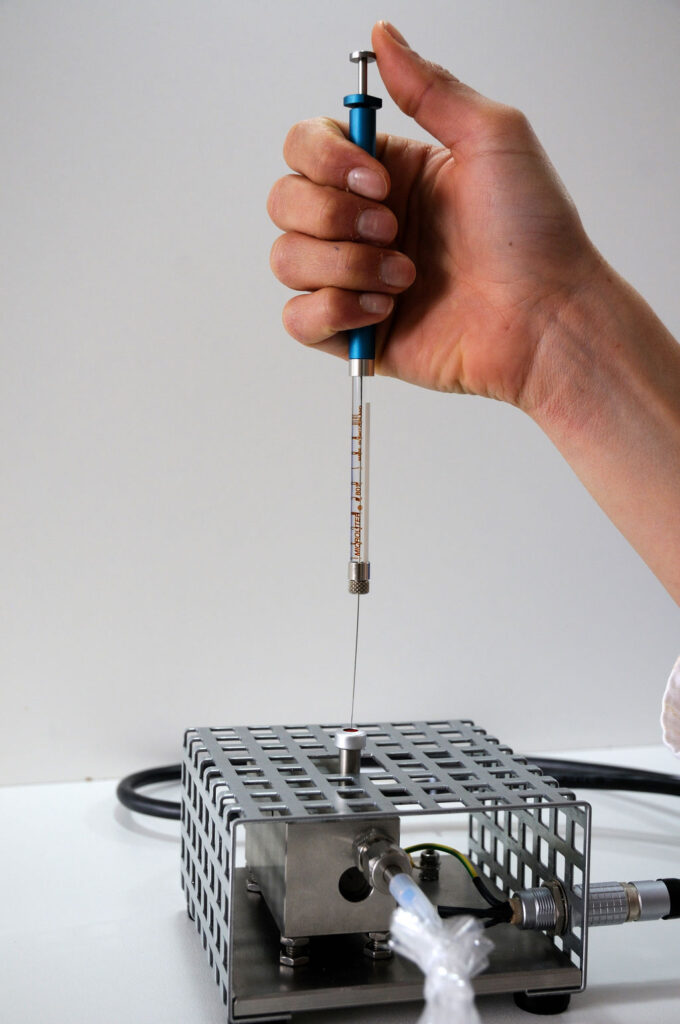

It is also simple to operate: just inject a set volume of the liquid sample (e.g. a fragrance, aromatic, alcohol or fuel) into the LiGaVa, which will vaporise it. You can achieve the correct vapour pressure for your particular liquid sample by individually setting the evaporation temperature (up to 220°C). As the gas is formed, it streams into a connected sample bag at a constant volume flow rate. The volume flow and sample volume can be individually adjusted.
Once the liquid is in gaseous form, it is ready for various analyses:
- odour concentration
- odour intensity and pleasantness
- molecular profile
Applications
- Determine the detection threshold
- Optimise your substance:perception ratio (linear or logarithmic scale)
- Find out how your odour sample is perceived
- Compare odour samples
- Determine the molecular profile of your odour sample
- Optimise your formula

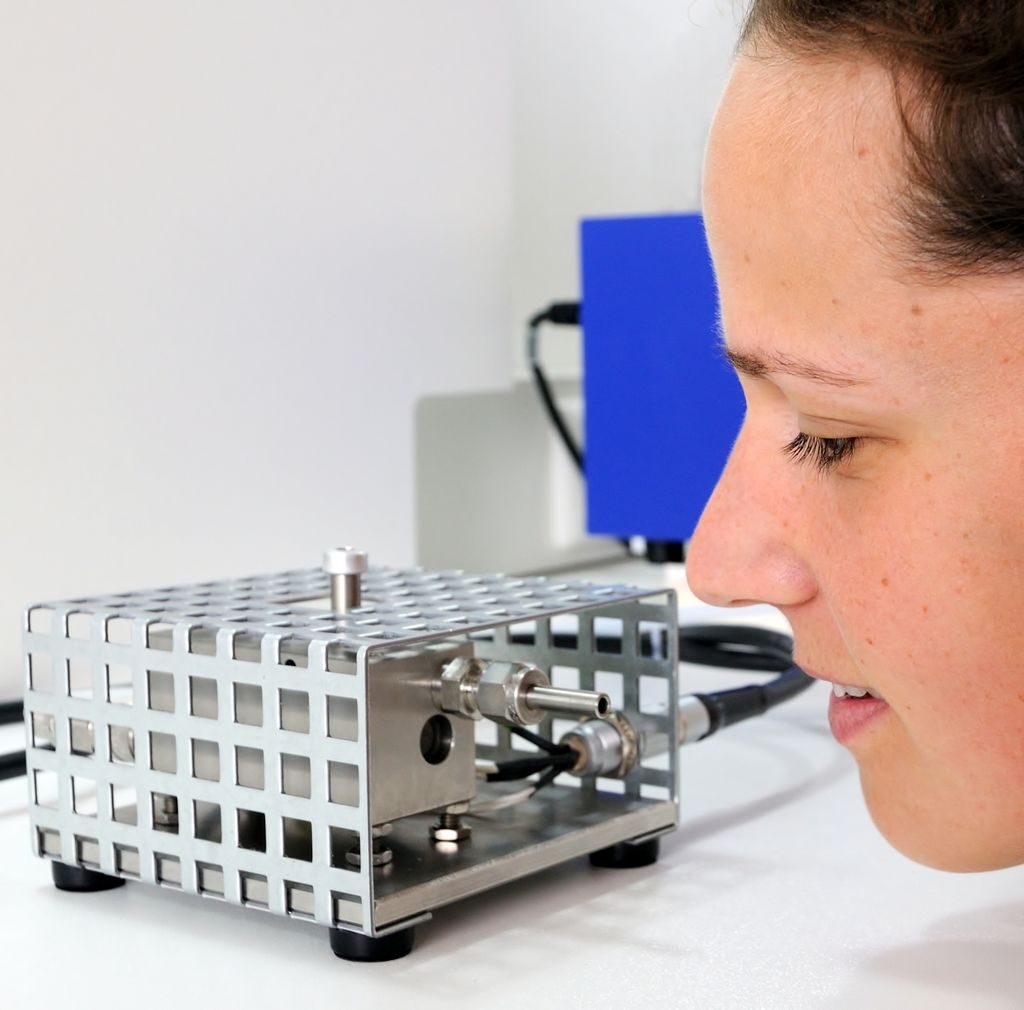

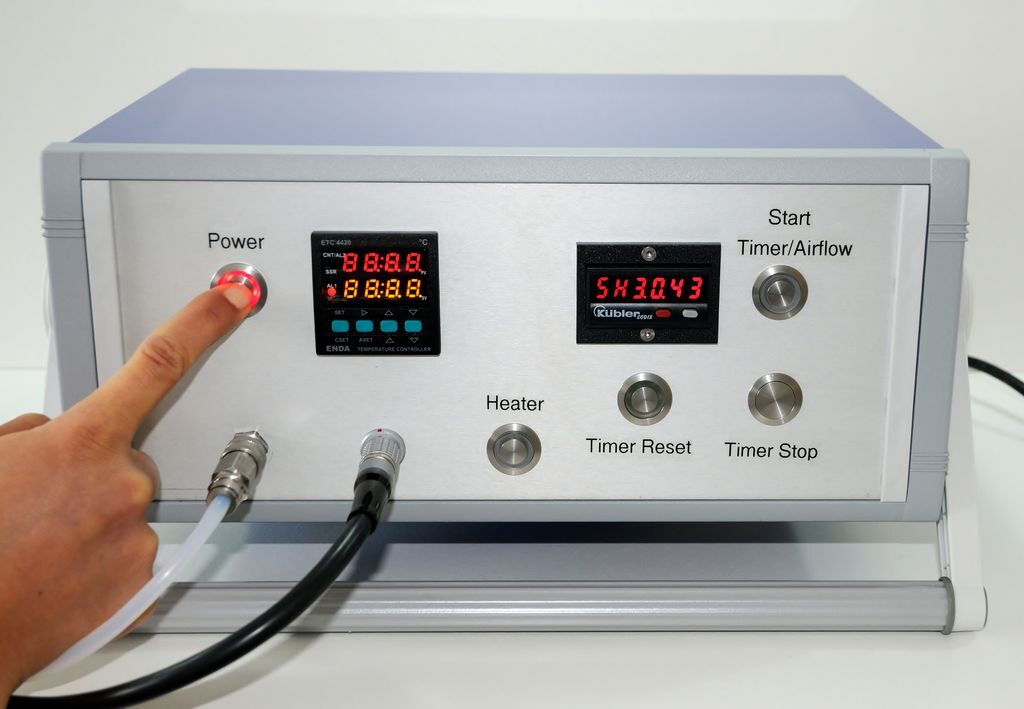

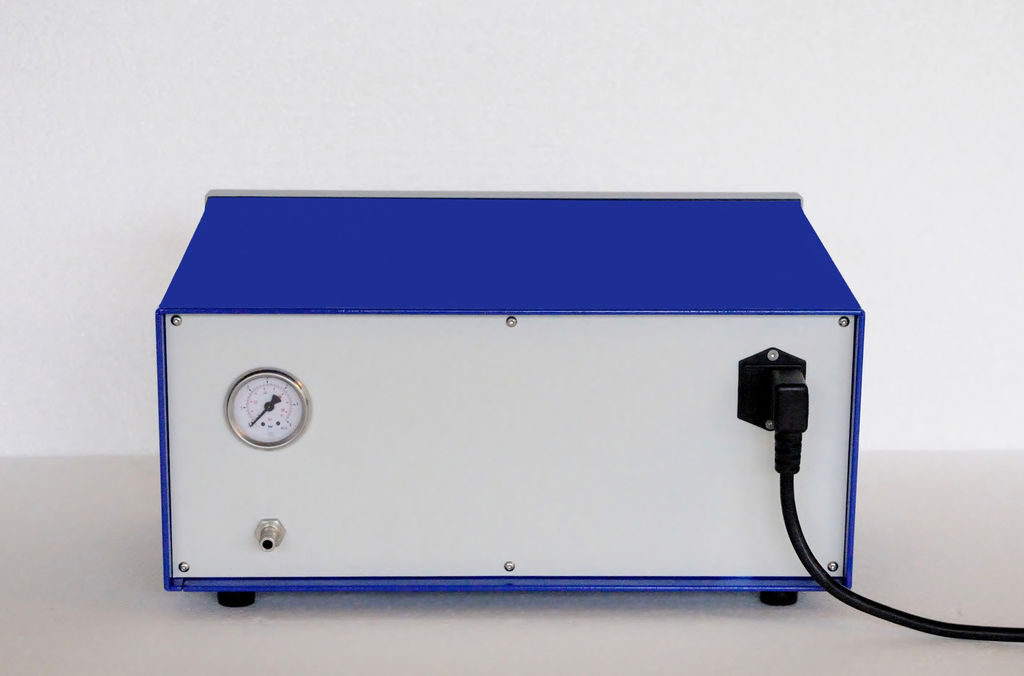

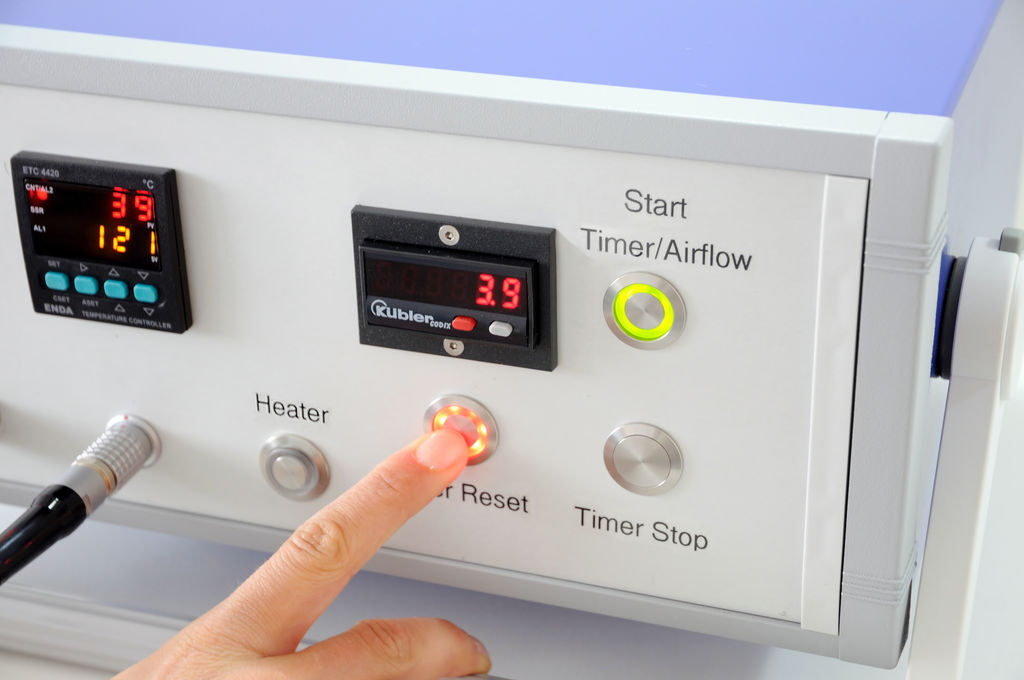

Additional images
Technical Data
General Details
Manufacturer
Olfasense GmbH, Germany
Dimension (L x W x H)
a) Control unit
b) Heating block
a) Control unit
b) Heating block
a) 470mm x 180mm x 485mm
b) 120mm x 120mm x 80mm
b) 120mm x 120mm x 80mm
Weight
a) Control unit
b) Heating block
a) Control unit
b) Heating block
a) approx. 6 kg
b) approx. 2 kg
b) approx. 2 kg
Warranty
24 months
Technical Specifications
Adjustable temperature range
5°C above room temperature to 250°C
Air supply
3-8 bar clean compressed air
Volume flow outlet
1 -20 l/h
Power supply
230V AC (90-264V 47-63Hz)
